Scaffold Collapses, Worker Injured

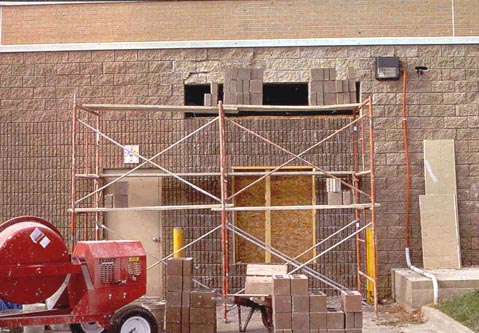

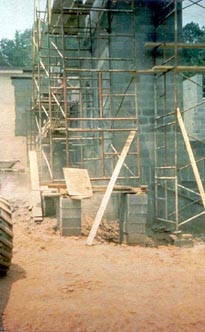

• In order to assure stability, supported scaffolds must be set on [29 CFR 1926.451(c)(2)]:
  • Base plate,
  • Mud sills
  • Or other adequate firm foundation (Figure 3)
• Footings must be capable of supporting the loaded scaffold without settling or displacement. [29 CFR 1926.451(c)(2)(i)]

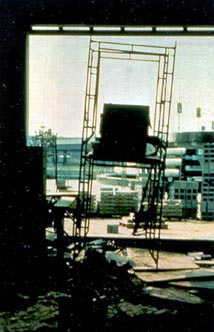

• Unstable objects may not be used to support scaffolds or platform units (Figure 1). [29 CFR 1926.451(c)(2)(ii)]
• Front-end loaders and similar pieces of equipment shall not be used to support scaffold platforms unless they have been specifically designed by the manufacturer for such use. [29 CFR 1926.451(c)(2)(iv)]
• Forklifts shall not be used to support scaffold platforms unless [29 CFR 1926.451(c)(2)(v)]:
  • The entire platform is attached to the fork.
  • The forklift is not moved horizontally while the platform is occupied.

Supported scaffold poles, frames, uprights, etc. must be plumb and braced to prevent swaying and displacement. In general, a level is the easiest way to achieve the desired right angles. [29 CFR 1926.451(c)(3)]

Worker Falls from Collapsing Scaffold

• Scaffolds and scaffold components must be capable of supporting, without failure, their own weight and at least 4 times their maximum intended load. (Figure 4) [29 CFR 1926.451(a)]
• Scaffolds shall be altered only under the supervision and direction of a competent person. [29 CFR 1926.451(f)(7)]

• Frames and panels must be connected by cross, horizontal, or diagonal braces, alone or in combination, which secure vertical members together laterally. [29 CFR 1926.452(c)(2)]
• As frames are stacked, cross braces must be of such length as will automatically keep the scaffold plumb, level, and square. [29 CFR 1926.452(c)(2)]

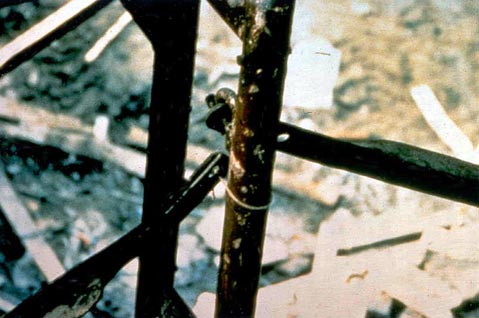

• All brace connections must be secured to prevent dislodging. (Figure 5) [29 CFR 1926.452(c)(2)]

Improper Coupling Results in Two Deaths

• Frames and panels must be joined together vertically by coupling or stacking pins or equivalent means. [29 CFR 1926.452(c)(3)]
• Frames and panels must be locked together to prevent uplift, where uplift can occur. Uplift is the separation of a frame from the frame below it. [29 CFR 1926.452(c)(4)]

• Scaffold components manufactured by different manufacturers must not be intermixed, unless they fit together without being forced and the scaffold's structural integrity is maintained. [29 CFR 1926.451(b)(10)]
• Scaffold components manufactured by different manufacturers are not allowed to be modified to make them fit together, unless a competent person determines that the resulting scaffold is structurally sound. [29 CFR 1926.451(b)(10)]
• Scaffold components made of dissimilar metals must not be used together unless a competent person has determined that galvanic action will not reduce the strength of any component below OSHA standards. [29 CFR 1926.451(b)(11)]
• Scaffold components made of dissimilar metals must not be used together unless a competent person has determined that galvanic action will not reduce the strength of any component below OSHA standards. [29 CFR 1926.451(b)(11)]

Improper Access Leads to Serious Injuries

• Employees must be able to safely access any level of a scaffold that is 2 feet above or below an access point. [29 CFR 1926.451(e)(1)]
• OSHA standards specifically forbid climbing cross-braces as a means of access. [29 CFR 1926.451(e)(1)]

• Portable, hook-on, and attachable ladders must be positioned so as not to tip the scaffold. (Figure 6) [29 CFR 1926.451(e)(2)(i)]
• Hook-on and attachable ladders must be specifically designed for use with the type of scaffold on which they are used. [29 CFR 1926.451(e)(2)(iv)]
• Hook-on and attachable ladder rungs must:
  • Be positioned so that their bottom rung is not more than 24 inches above the scaffold supporting level. [29 CFR 1926.451(e)(2)(ii)]
  • Have uniform spacing between rungs of a maximum 16¾ inches. [29 CFR 1926.451(e)(2)(vi)]
  • Have minimum rung length of 11½ inches. [29 CFR 1926.451(e)(2)(v)]
  • Have rest platforms provided at a maximum of 35-foot vertical intervals. [29 CFR 1926.451(e)(2)(iii)]
• Stairway-type ladders must:
  • Be positioned so that their bottom step is not more than 24 inches above the scaffold supporting level, [29 CFR 1926.451(e)(3)(i)]
  • Have rest platforms at maximum vertical intervals of 12 feet, [29 CFR 1926.451(e)(3)(ii)]
  • Have a minimum step width of 16 inches, except for mobile scaffold stairway-type ladders, which shall have a minimum step width of 11½ inches [29 CFR 1926.451(e)(3)(iii)], and
  • Have slip-resistant treads on all steps and landings. [29 CFR 1926.451(e)(3)(iv)]
• Steps and rungs of ladders and stairway-type ladders must line up vertically with each other between rest platforms. [29 CFR 1926.451(e)(7)]

Integral (built-in) scaffold access frames must:

• Be specifically designed and constructed for use as ladder rungs. [29 CFR 1926.451(e)(6)(i)]
• Not be used as work platforms when rungs are less than 11½ inches in length, unless each affected employee uses appropriate fall protection. [29 CFR 1926.451(e)(6)(iii)]
• Have rungs which are uniformly spaced and a length of at least 8 inches, with a maximum space between rungs of 16¾ inches. [29 CFR 1926.451(e)(6)(ii), (iii), (iv) and 29 CFR 1926.451(e)(2)(vi)]
• Have rest platforms provided at a maximum of 35 foot vertical intervals. [29 CFR 1926.451(e)(6)(v)]

Stair towers (scaffold stairway/towers) must have (Figure 7):

• A stair rail consisting of a toprail and a midrail on each side of the stairway. [29 CFR 1926.451(e)(4)(i)]
• A toprail of each stair rail system capable of serving as a handrail, unless a separate handrail is provided. [29 CFR 1926.451(e)(4)(ii)]
• Sufficient handhold on handrails, and toprails serving as handrails, for employees grasping them to avoid falling. [29 CFR 1926.451(e)(4)(iii)]
• Stair rails and handrails surfaced to prevent punctures or lacerations to employees, and to prevent snagging of clothing. [29 CFR 1926.451(e)(4)(iv)]
• Ends of stair rails and handrails constructed so that they do not constitute a projection hazard. [29 CFR 1926.451(e)(4)(v)]
• A space of at least 3 inches between handrails, or stair rails used as handrails, and other objects. [29 CFR 1926.451(e)(4)(vi)]
• A distance of no less than 28 inches and no more than 37 inches from the upper surface of the stair rail to the forward edge of the tread, in line with the face of the riser. [29 CFR 1926.451(e)(4)(vii)]
• A landing platform at least 18 inches wide by 18 inches long at each level. [29 CFR 1926.451(e)(4)(viii)]
• A scaffold stairway width of at least 18 inches between stair rails. [29 CFR 1926.451(e)(4)(ix)]
• Slip-resistant surfaces on treads and landings. [29 CFR 1926.451(e)(4)(x)]
• Stairways installed between 40 degrees and 60 degrees from the horizontal. [29 CFR 1926.451(e)(4)(xi)]
• Guardrails meeting OSHA requirements on the open sides and ends of each landing. [29 CFR 1926.451(g)(4) and 29 CFR 1926.451(e)(4)(xii)]
• Uniform riser height, within ¼-inch, for each flight of stairs. Greater variations in riser height are allowed for the top and bottom steps of the entire system (not for each flight of stairs). [29 CFR 1926.451(e)(4)(xiii)]
• Uniform tread depth, within ¼-inch, for each flight of stairs. [29 CFR 1926.451(e)(4)(xiv)]

• Ramps and walkways 6 feet or more above lower levels must have guardrails that comply with 29 CFR 1926 Subpart M - Fall Protection. [29 CFR 1926.451(e)(5)(i)]
• No ramp or walkway shall incline more than 1:3 (1 vertical to horizontal, or 20 degrees above the horizontal). [29 CFR 1926.451(e)(5)(ii)]
• If a ramp or walkway has a slope of more than 1:8, it must have cleats securely fastened to the planks not more than 14 inches apart, to provide footing. [29 CFR 1926.451(e)(5)(iii)]

Direct access to or from another surface is permitted only when the scaffold is not more than 14 inches horizontally and not more than 24 inches vertically from the other surface. [29 CFR 1926.451(e)(8)]

• Employers are required to provide safe access for employees erecting or dismantling supported scaffolds where it is feasible, and where it does not create a greater hazard. [29 CFR 1926.451(e)(9)(i)]
• Hook-on or attachable ladders shall be installed as soon as scaffold erection has progressed to the point that permits safe installation and use. (Figure 9) [29 CFR 1926.451(e)(9)(ii)]
• When erecting and dismantling tubular, welded-frame scaffolds, end frames may be used as climbing devices for access, provided that [29 CFR 1926.451(e)(9)(iii)]:
  • Horizontal members are parallel, level, and not more than 22 vertical inches apart.
  • They are erected in a manner that creates a usable ladder and provides good hand hold and foot space.
• Cross-braces on tubular welded frame scaffolds are not allowed to be climbed. [29 CFR 1926.451(e)(9)(iv)]

The competent person is responsible for determining the safety and feasibility of installing and using safe means of access, based on site conditions and the type of scaffold involved. [29 CFR 1926.451(e)(9)(i)]

• Each employee on a scaffold more than 10 feet above a lower level must be protected from falling to that lower level. [29 CFR 1926.451(g)(1)]
• Fall protection consists of either personal fall arrest systems or guardrail systems meeting OSHA requirements. [29 CFR 1926.451(g)(1)(vii)]
• Employees performing overhand bricklaying operations from a supported scaffold must be protected from falling from all open sides and ends of the scaffold, except at the side next to the wall being laid. [29 CFR 1926.451(g)(1)(vi)]

• In addition to meeting the requirements of 29 CFR 1926.502(d), personal fall-arrest systems used on scaffolds are to be attached by lanyard to a vertical lifeline, horizontal lifeline, or scaffold structural member. [29 CFR 1926.451(g)(3)]
• When vertical lifelines are used, they must be fastened to a fixed safe point of anchorage, independent of the scaffold, and be protected from sharp edges and abrasion. Safe points of anchorage include structural members of buildings, but not standpipes, vents, electrical conduit, etc., which may give way under the force of a fall. [29 CFR 1926.451(g)(3)(i)]
• It is dangerous and therefore impermissible for two or more vertical lifelines to be attached to each other, or to the same point of anchorage. [29 CFR 1926.451(g)(3)(iv)]
• When horizontal lifelines are used, they are to be secured to two or more structural members of the scaffold. [29 CFR 1926.451(g)(3)(ii)]

• Guardrail systems must be installed along all open sides and ends of platforms, and must be in place before the scaffold is released for use by employees other than erection/dismantling crews. [29 CFR 1926.451(g)(4)(i)]
• Walkways located within a scaffold must have guardrail systems installed within 9½ inches of and along at least one side of the walkway. [29 CFR 1926.451(g)(1)(v)]
• Each toprail or equivalent member of a guardrail system must be able to withstand a force of at least 200 pounds applied in any downward or horizontal direction, at any point along its top edge. [29 CFR 1926.451(g)(4)(vii)]
  • The top edge height of toprails on supported scaffolds must be between 36 inches and 45 inches.
  • When conditions warrant, the height of the top edge may exceed the 45-inch height, provided the guardrail system meets all other criteria. (NOTE: The minimum top edge height on scaffolds manufactured or placed in service after January 1, 2000 is 38 inches). [29 CFR 1926.451(g)(4)(ii)]
• Midrails, screens, mesh, intermediate vertical members, solid panels, etc., must be able to withstand a force of at least 150 pounds applied in any downward or horizontal direction, at any point along the midrail or other member. [29 CFR 1926.451(g)(4)(ix)]
  • When midrails are used, they must be installed at a height approximately midway between the top edge of the guardrail system and the platform surface. [29 CFR 1926.451(g)(4)(iv)]
  • When screens and mesh are used, they must extend from the top edge of the guardrail system to the scaffold platform, and along the entire opening between the supports. [29 CFR 1926.451(g)(4)(v)]
  • When intermediate members (such as balusters or additional rails) are used, they must be no more than 19 inches apart. [29 CFR 1926.451(g)(4)(vi)]
• Guardrails must be surfaced to prevent punctures or lacerations to employees and to prevent snagging of clothing, which may cause employees to lose their balance. [29 CFR 1926.451(g)(4)(xi)]
• Ends of rails may not extend beyond their terminal posts, unless they do not constitute a projection hazard to employees. [29 CFR 1926.451(g)(4)(xii)]
• In lieu of guardrails, crossbracing may serve as a toprail or midrail, providing the crossing point is:
  • Between 20 and 30 inches above the work platform for a midrail, or
  • Between 38 and 48 inches above the work platform for a toprail. [29 CFR 1926.451(g)(4)(xv)]
• For other scaffolding guardrail requirements, see 29 CFR 1926.451(g)(4).

Employers are required to provide fall protection for employees erecting or dismantling supported scaffolds where it is feasible, and where installing and using it does not create a greater hazard. [29 CFR 1926.451(g)(2)]

The employer must designate a competent person, who would be responsible for determining the feasibility and safety of providing fall protection for employees erecting or dismantling supported scaffolds. [29 CFR 1926.451(g)(2)]

• Each platform must be fully planked or decked between the front uprights and the guardrail supports (see Figure 13 and Figures 14 & 15). [29 CFR 1926.451(b)(1)]
• Platforms used solely as walkways, or during erection or dismantling, require only the planking that the employer establishes is necessary to provide safe working conditions. [29 CFR 1926.451(b)(1)(ii)]
• No gaps greater than 1 inch are permitted between adjacent planks or deck units, or between the platform and the uprights, unless the employer can demonstrate that a wider space is necessary. In such cases, the gap will be as small as possible and not exceed 9½ inches. [29 CFR 1926.451(b)(1)(i) and (ii)]
• Wooden planking must not be covered with opaque finishes, except that platform edges may be marked for identification. Platforms may be coated periodically with wood preservatives, fire retardants, and slip-resistant finishes, provided they do not obscure the top or bottom wood surfaces. [29 CFR 1926.451(b)(9)] (NOTE: For more on wooden planking, see Planking.)
• Scaffold platforms and walkways must be at least 18 inches wide, unless they are used in areas that the employer can demonstrate are so narrow that they must be less than 18 inches wide. In such cases, the platforms must be as wide as feasible, and fall protection must be provided. [29 CFR 1926.451(b)(2)(i) and (ii)]
• Nothing that could cause a slip, trip or fall (i.e. tools, scrap material, chemicals, snow, ice, etc.) is allowed to accumulate on the platform. [29 CFR 1926.451(f)(8) and 29 CFR 1926.451(f)(13)]

  Tip: For the same reason, cleats or other means of connecting planks should be on the underside.

• When moving platforms to the next level, the existing platform must be left undisturbed until the new end frames have been set in place and braced. [29 CFR 1926.452(c)(1)]

For most activities, there must be no more than a 14-inch gap between the scaffold platform and the structure being worked on. For lathing and plastering, a gap of 18 inches is permitted. (Figure 13) [29 CFR 1926.451(b)(3) and 29 CFR 1926.451(b)(3)(ii)]

Improper Access Leads to Serious Injuries

• To prevent slippage, platforms must be cleated or otherwise restrained at each end, or else overlap their support at least 6 inches (Figure 13). [29 CFR 1926.451(b)(4)]
• Unless it is designed and installed to support employees and materials without tipping, or has guardrails that block employee access, each end of a platform may not extend over its support more than 12 inches (for platforms 10 feet or shorter in length) or more than 18 inches (for platforms more than 10 feet long). [29 CFR 1926.451(b)(5)]
• On scaffolds where platforms are overlapped to create a long platform, the overlap may only occur over supports, and may not be less than 12 inches, unless the platforms are restrained (i.e., nailed together) to prevent movement. [29 CFR 1926.451(b)(7)]
• On scaffolds where platforms are abutted to create a long platform, each abutted end must rest on a separate support surface (this does not preclude the use of shared support members such as "T" sections, hook-on platforms that rest on common supports, etc.). [29 CFR 1926.451(b)(6)]
• When platforms must overlap because a scaffold changes direction, such as turning a corner, platforms that rest on a bearer at an angle other than a right angle shall be laid first, and platforms that rest at right angles over the same bearer shall be laid second, on top of the first platform. [29 CFR 1926.451(b)(8)]

When brackets are used to support cantilevered platforms, they must:

• Be seated with side-brackets parallel to the frames, and end-brackets at 90 degrees to the frames. [29 CFR 1926.452(c)(5)(i)]
• Be used only to support personnel, unless the scaffold has been designed for other loads by a qualified engineer and built to withstand the tipping forces caused by other loads. [29 CFR 1926.452(c)(5)(iii)]

• Scaffold platforms must be able to support their own weight, plus four times the maximum intended load. [29 CFR 1926.451(a)(1)]
• Do not load the scaffold or any component parts beyond their maximum capacity (their own weight and 4:1 the maximum intended load). A scaffold can be overloaded by [29 CFR 1926.451(f)(1)]:
  • Too many people being on the platform.
  • Too much material being stored on the platform.
  • Point loading, or concentrating too much of the load in one area. (Figures 14 & 15)

Figures 14 & 15. Planking on this platform should be six planks wide, instead of only two. Also, note that the planks are bowing because the bricks are loaded at one point on the platform instead of being evenly distributed.

There are two kinds of falling object hazards associated with scaffolds. One concerns the employees on the scaffold itself, and the other concerns employees who may work in or enter the area below the scaffold.

• Each employee on a scaffold must be protected from falling hand tools, debris, and other small objects, by [29 CFR 1926.451(h)(1)]:
  • Hardhats
  • Toeboards, screens, or guardrail systems
  • Debris nets or canopy structures that contain or deflect falling objects.
  • Placement of potential falling objects away from the edge of the surface from which they may fall when the falling objects are too large, heavy or massive to be contained or deflected by any of the above-listed measures.
• Where there is a danger of tools, materials, or equipment falling from a scaffold onto employees below, they must be protected by [29 CFR 1926.451(h)(2)]:
  • The area below the scaffold being barricaded so employees are not permitted to enter.
  • Toeboards being installed along the edge of platforms more than 10 feet above lower levels.
  • Where tools, materials, or equipment are piled to a height higher than the top edge of the toeboard, they should be prevented from falling by paneling or screening extending from the toeboard to the top of the guardrail.
  • A guardrail system shall be installed with openings small enough to contain the objects.
  • Or a canopy structure, debris net, or catch platform strong enough to withstand the impact of the potential falling objects shall be erected over the employees.
• When toeboards are used for falling object protection, they must be [29 CFR 1926.451(h)(4)]:
  • Able to withstand a force of at least 50 pounds applied in any downward or horizontal direction, at any point along the toeboard.
  • At least 3½ inches high from the top edge to the level of the walking/working surface.
  • Securely fastened in place at the outermost edge of the platform, and not have more than ¼-inch clearance above the walking/working surface.
  • Solid, or with openings not over 1 inch.

See Appendix A of Subpart L for non-mandatory toeboard guidelines.

When a supported scaffold reaches a height that is more than four times its minimum base dimension (4:1), it must be restrained by guys, ties, or braces to prevent it from tipping. [29 CFR 1926.451(c)(1)]

• Guys, ties, and braces must be installed at locations where horizontal scaffold components support both inner and outer legs. [29 CFR 1926.451(c)(1)(i)]
• Guys, ties, and braces must be installed according to the scaffold manufacturer's recommendations or at the closest horizontal member to the 4:1 height ratio and be repeated every 20 vertical feet for narrow scaffolds (3 feet or less in width), and every 26 vertical feet for scaffolds greater than 3 feet in width. [29 CFR 1926.451(c)(1)(ii)]
• Ties, guys, braces, or outriggers shall be used to prevent tipping of supported scaffolds bearing eccentric loads, such as cantilevered work platforms. [29 CFR 1926.451(c)(1)(iii)]

• Scaffolds and scaffold components must be inspected for visible defects before each shift by a competent person, and after each occurrence that could affect a scaffold's integrity (such as being struck by a crane). [29 CFR 1926.451(f)(3)]
• Any part of a scaffold that has been damaged or weakened so that it no longer meets OSHA strength requirements must either be repaired, replaced, braced, or removed from service. [29 CFR 1926.451(f)(4)]

Scaffolds may not be moved horizontally while employees are on them, unless they have been designed for that purpose by a registered professional engineer, or in the case of mobile scaffolds, where the provisions of 29 CFR 1926.452(w) are followed. [29 CFR 1926.451(f)(5)]

Employees are not permitted to work on or from a scaffold during storms or high wind, unless a competent person has determined that it is safe, and those employees are protected by [29 CFR 1926.451(f)(12)]:

• Personal fall arrest systems.
• Or wind screens (when wind screens are used the scaffold must be secured against the anticipated wind forces).

• Scaffolds must not be close enough to overhead power lines that they, or any conductive materials (e.g. building materials, paint roller extensions, scaffold components) that may be handled on them, come closer than 10 feet to the power line. (Figure 18)
  • Exception: Insulated power lines of less than 300 volts have a safe distance of only 3 feet.
• Scaffolds may be closer to overhead power lines than specified below if such proximity is necessary for the type of work being done, and if the power company or electrical system operator has been notified and has either [29 CFR 1926.451(f)(6)]:
  • De-energized the lines (Figure 17).
  • Relocated the lines.
  • Installed protective coverings to prevent accidental contact with the lines.

See additional images.

Because metal frame scaffolds are conductive, power tools, cords, etc., that suffer insulation failure can electrify the entire scaffold. This poses a risk of electrocution not just to the worker holding the tool, but to everyone who contacts the scaffold. Therefore, all portable electric equipment must be protected by:

• GFCIs (ground-fault circuit interrupters)
• Or an AEGCP (assured equipment grounding conductor program, in accordance with 29 CFR 1926.404(b)(1)(i). (See Electrical Incidents: Lack of Ground-Fault Protection in the OSHA Construction eTool)

• Scaffolds must be designed by a qualified person, and be constructed and loaded in accordance with that design (Figure 19). [29 CFR 1926.451(a)(6)]
• Scaffolds are to be erected, moved, dismantled, or altered only under the supervision of a competent person qualified in such activities. [29 CFR 1926.451(f)(7)]
• Scaffolds over 125 feet (38.0m) in height above their base plates shall be designed by a registered professional engineer, and shall be constructed and loaded in accordance with such design. [29 CFR 1926.452(c)(6)]
• Non-mandatory examples of criteria that will enable an employer to comply with 29 CFR 1926.451(a) are contained in 29 CFR 1926 Subpart L Appendix A.

Worker Dies During Scaffold Erection

• Scaffolds are to be erected, moved, dismantled, or altered only by experienced and trained employees who have been selected for that work by the competent person. [29 CFR 1926.451(f)(7)]
• Employees who are involved in activities such as erecting, dismantling, repairing, and inspecting scaffolds must be trained by a competent person to recognize any hazards associated with those activities. Training shall include [29 CFR 1926.454(b)]:
  • The nature of scaffold hazards.
  • Correct procedures for erecting, disassembling, etc. the type of scaffold in question.
  • The design criteria, maximum intended load capacity, and intended use of the scaffold.
  • Any other pertinent requirements.
• Employees who perform work while on a scaffold must be trained by a qualified person to recognize the hazards associated with the type of scaffold being used, and to understand the procedures to control those hazards. Training shall include [29 CFR 1926.454(a)]:
  • The nature of any electrical hazards, fall hazards, and falling object hazards in the work area.
  • The correct procedures for dealing with those hazards.
  • The proper use of the scaffold, and the proper handling of materials on the scaffold.
  • The maximum intended load and the load-carrying capacity of the scaffold.
  • Any other pertinent requirements.
• Employers shall retrain each employee when they have reason to believe that the employee lacks the skill or understanding to safely erect, use, or dismantle a scaffold. Such retraining is required in at least the following situations [29 CFR 1926.454(c)]:
  • Changes at the worksite present a hazard for which an employee has not previously been trained.
  • Changes in the types of scaffolds, fall protection, falling object protection, or other equipment present a hazard for which an employee has not previously been trained.
  • Inadequacies in an affected employee's work indicate that the employee has not retained the necessary proficiency.
