Machine Guarding eTool
Thermoforming Machine » Safety Tour - Slide 11

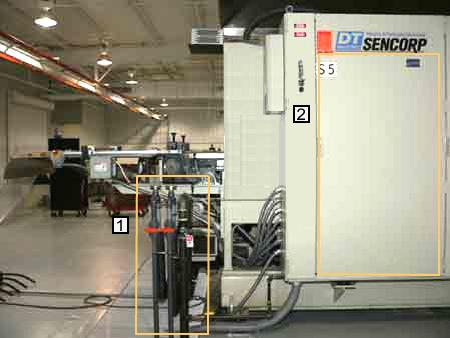

Featured areas in the image are numbered and described in the "Featured Areas" section located below the image.
Featured Areas
The two water lines on the left provide process water to the thermoformer. The line on the right (with the yellow handle) is a compressed air line with a lockable/bleed off valve for use during lockout of the line. [Photo description: Highlighted area includes several metal pipes on the side of the main machine body. One of the pipes has a yellow handle.] View close-up
Behind this door is the servo controller. [Photo description: Highlighted area includes a white metal door on the side of the machine. The door is nearly the entire height of the machine.] View close-up
Close-up image of a water and air lines.
The two water lines on the left provide process water to the thermoformer. The line on the right (with the yellow handle) is a compressed air line with a lockable/bleed off valve for use during lockout of the line.
[Photo description: Photo includes several metal pipes on the side of the main machine body. One of the pipes has a yellow handle.]
Close-up image of the door to the servo controller.
Behind this door is the servo controller.
[Photo description: Photo includes a white metal door on the side of the machine. The door is nearly the entire height of the machine.]
