Thermoforming Machine » Safety Tour - Slide 30

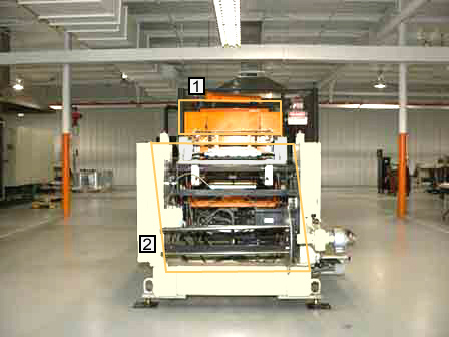

Featured areas in the image are numbered and described in the "Featured Areas" section located below the image.
Featured Areas
A properly applied adjustable guard controls worker access to moving plastic sheet or machinery. [Photo description: The highlighted area includes a sheet of orange metal covering an area housing moving parts.] View close-up
End view of the stacker and scrap rewinder. [Photo description: The highlighted area includes the end of the machine with a round spool with two prongs on one end where the trim scrap is rewound. Also shown are some internal pieces of the stacker.] View close-up
Close-up image of the adjustable guard.
A properly applied adjustable guard controls worker access to moving plastic sheet or machinery.
[Photo description: Photo includes a sheet of orange metal covering an area housing moving parts.]
Close-up image of the end view of the stacker.
End view of the stacker and scrap rewinder.
[Photo description: Photo shows an end view of the thermoforming machine which includes parts of the stacker and adjustable guard.]
