Oil and Gas Well Drilling and Servicing eTool
Transportation » All-Terrain Vehicles (ATVs) and Utility Task Vehicles (UTVs)
ATVs and UTVs are used in a number of applications in the oil and gas exploration and production industry. An ATV is an off-road, single-rider vehicle intended for transport over rough terrain. ATVs feature a handle bar steering system. A UTV is also intended for use over rough terrain, though this vehicle is sometimes known as a side-by-side because two people can sit in the cab next to each other. Both can be used to haul items, but a UTV features a truck-like bed specifically for this purpose. UTVs also feature a steering wheel similar to that in a car or truck.
Tasks and key safety and health practices for ATVs and UTVs include:
Potential Hazard
- Rollover.
Possible Solutions
- Center tires on ramps.
- When unloading from a truck bed, use the longest loading ramps available.
- Do not attempt to turn the ATV while on loading ramps.
- Install roll bars where practicable.
Potential Hazard
- Ramps slipping when unloading from truck bed.
Possible Solution
- Secure ramps with tie-downs and/or anti-slip matting.
Potential Hazard
- Vehicle becomes unsecure.
Possible Solutions
- Use tie-downs and straps to secure vehicle to a suitable trailer.
- Ensure that the ATV/UTV parking brake is engaged.
Potential Hazard
- Trailer becomes unsecure.
Possible Solution
- Ensure the trailer is properly attached and secured to the pulling vehicle.
Potential Hazard
- Equipment failure.
Possible Solution

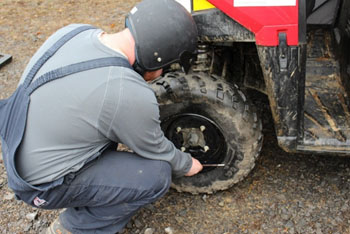

- Perform a T-CLOC inspection (Tires and Wheels, Controls and Cables, Lights and Electrical, Oil and Fuel, Chain and Chassis).
Potential Hazard
- A fire on the ATV or UTV, or a personal injury can occur. In dry areas, operating an ATV/UTV can also start brush fires.
Possible Solution
- Ensure the equipment has a secured fire extinguisher and first aid kit.
Potential Hazard
- Rollover caused by uneven terrain and slopes.
Possible Solutions
- Assess steep or uneven terrain before crossing.
- Avoid traveling across the slope. Whenever possible, travel straight up or down the slope.
- Choose a route with the least grade.
- If you encounter slopes and you are unsure of the machine’s capability, get off and walk the route.
- Avoid turning sharply or at excessive speeds.
- Apply the brake and turn at a slower speed.
- Ensure the vehicle is equipped with a roll bar if applicable.
Potential Hazard
- Rollover from encountering obstacles (rocks/logs/mud/water).
Possible Solutions
- Assess terrain before crossing.
- Whenever possible, remove the obstacle or go around it.
- Slowly approach the obstacle straight on. When the tires contact the obstacle, slowly accelerate to maintain momentum until the obstacle is cleared.
- Ensure the vehicle is equipped with a roll bar if applicable.
Potential Hazard
- Collision with motor vehicles.
Possible Solutions
- When crossing roadways, look both ways for oncoming traffic.
- Avoid crossing roadways where visibility is restricted.
- Operators must abide by traffic signage when traveling on pavement.
Potential Hazard

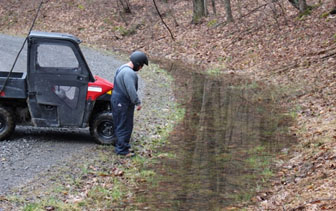

- Crossing water.
Possible Solutions
- Do not cross water that is deep and swift.
- Assess the water’s bottom for rocks or other submerged obstacles.
Potential Hazard
- Parking on slopes.
Possible Solutions
- Do not park sideways on a slope.
- Set the park brake when getting off the equipment.
- Chock wheels.
- Park the ATV/UTV directed away from your work area.
Potential Hazard
- Hauling too many people.
Possible Solutions
- Follow manufacturer’s recommendation for how many personnel may be hauled by the ATV/UTV. Most ATVs will be limited to one rider.
- Use seatbelts if provided.
Potential Hazard
- Lack of operator training.
Possible Solution
- Ensure operators attend an industry-recognized and machine-specific safety course for ATV/UTV operation.
- Periodically check drivers’ records for infractions (commercial and non-commercial).
Potential Hazard
- Operating a vehicle while working alone where co-workers are not available to monitor the driver’s condition and report vehicle accidents.
Possible Solutions
- Use a vehicle monitoring device.
- Set up driver check-in requirements during and after each shift.
- Provide radios to lone workers.
Potential Hazard
- Fatigue.
Possible Solutions
- Take frequent rests when traveling long distances.
Potential Hazard
- Operation in inclement weather.
Possible Solutions
- Use chains for traction in snow or ice conditions.
- Use a cover on both ATVs and UTVs for protection from both rain/snow/ice and sun exposures.
- To prevent cold stress, wear many layers of clothing, with fire retardant (FR) being the outermost layer when required.
- To prevent heat stress, pack water and ice on the equipment during the warmer months. Take frequent breaks to cool down and rehydrate.
Potential Hazard
- Personal injury.
Possible Solutions
- Drivers must wear a DOT-approved helmet.
- Drivers should wear safety-toe shoes and eye protection.
- Follow manufacturer's recommendations for personal protective equipment (PPE).
